Détails du produit
High Load Capacity: Capable of carrying up to 40 tons, this trailer significantly reduces the number of trips needed, improving operational efficiency and cutting down transportation costs.

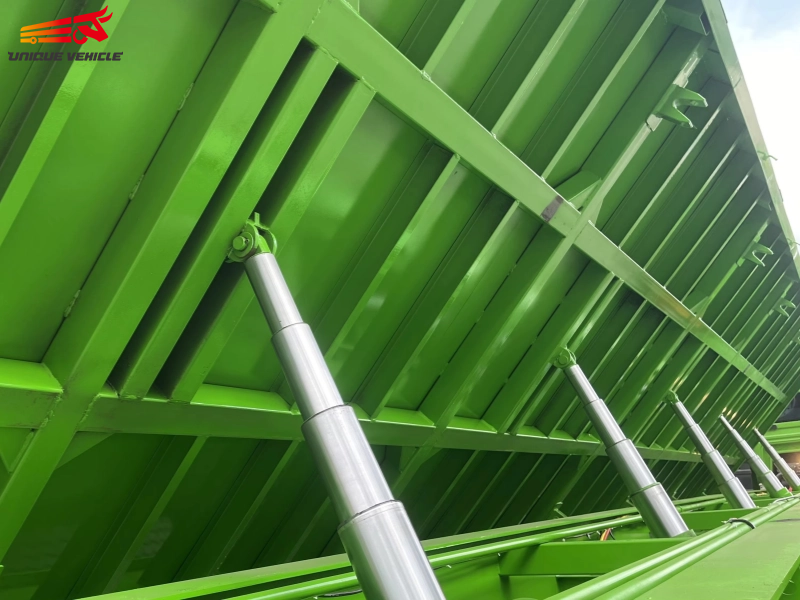

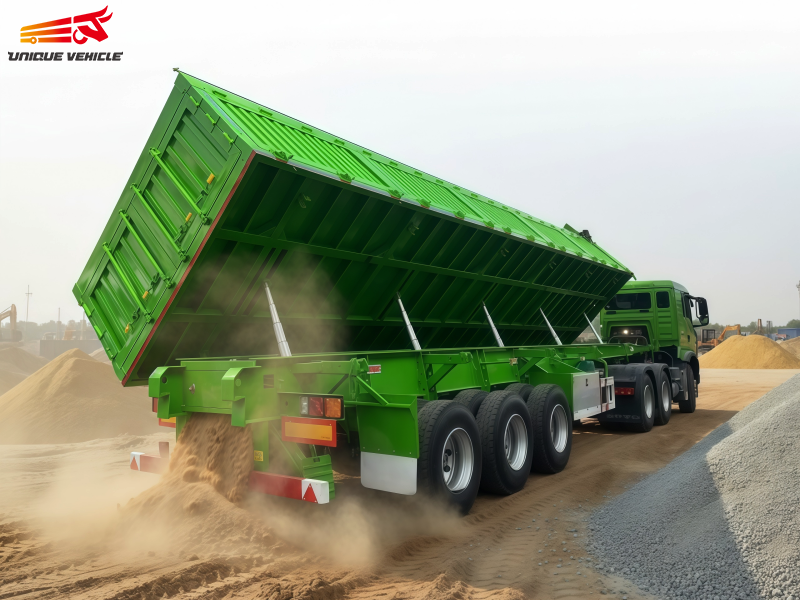

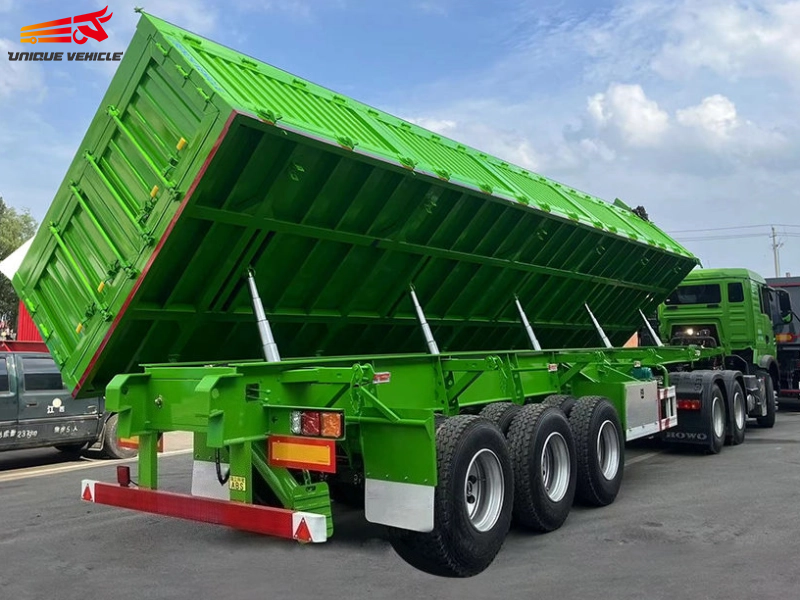

Lateral Unloading: The side tipping feature facilitates fast unloading in confined spaces where rear tipping isn’t possible, enhancing its versatility for various tasks.
Paramètres du produit
| Size | 11500*2550*1200mm |
| Main beam | Upper 12mm; bottom 14mm; middle 8mm; 480mm height |
| Cross beam | Bending steel 4mm |
| Brake chamber | 3 pcs, aluminum alloy material |
| King pin | 90# or 50# |
| Suspension | Mechanical suspension, 70 pin |
| Floor | 6mm flat plate |
| Landing gear | 28 T |
| Draw plate | 10mm thickness |
| Payload | 60T |
| Tare weight | About 9 ton |
| Axle | 3 axles（Brands available） |
| Side beam | 16# channel |
| Leaf spring | Standard 10pcs |
| Rim | 9.0, 12pcs |
| Pneumatique | 12R22.5*12 pcs |
| Air tanker | 6 double |
| Brake system | WABCO |
| Gas circuit | &12 red yellow nylon tube |
| Wire tightener | 24 pcs |
| Paint | One anti-rust paint, two component polyurethane paint |
Detail

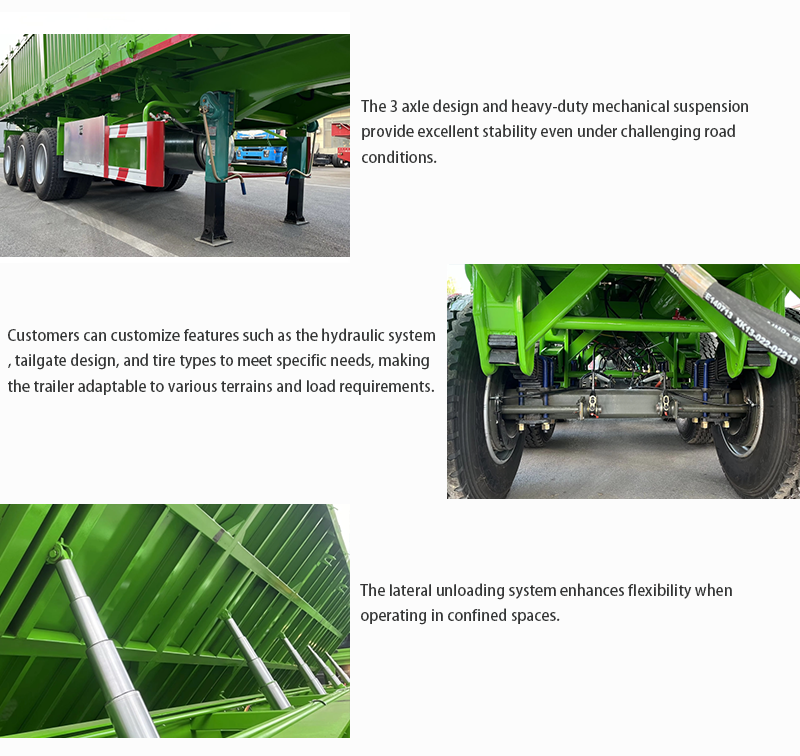

Customization Options: Customers can customize features such as the hydraulic system, tailgate design, and tire types to meet specific needs, making the trailer adaptable to various terrains and load requirements.
Why Choose Our Side Tipping Trailer?
Choose our Side Tipping Trailer for its durability, efficiency, and adaptability, backed by years of expertise in manufacturing top-quality semi-trailers.
To ensure production accuracy and efficiency, our factory is equipped with 10 welding production lines, over 30 CNC cutting machines, 3 large-scale spraying production lines, as well as a series of advanced production equipment such as hydraulic bending machines and shot blasting machines. The key processes of welding, cutting, and spraying are all operated by experienced professional technicians. Quality inspectors are specially assigned to monitor each process in real time. Before the finished products leave the factory, they must undergo comprehensive inspections by a professional quality inspection center to ensure that each semi-trailer delivered to customers has the core advantages of stable performance, safety and reliability, and long service life.
