Détails du produit
Stability and Safety

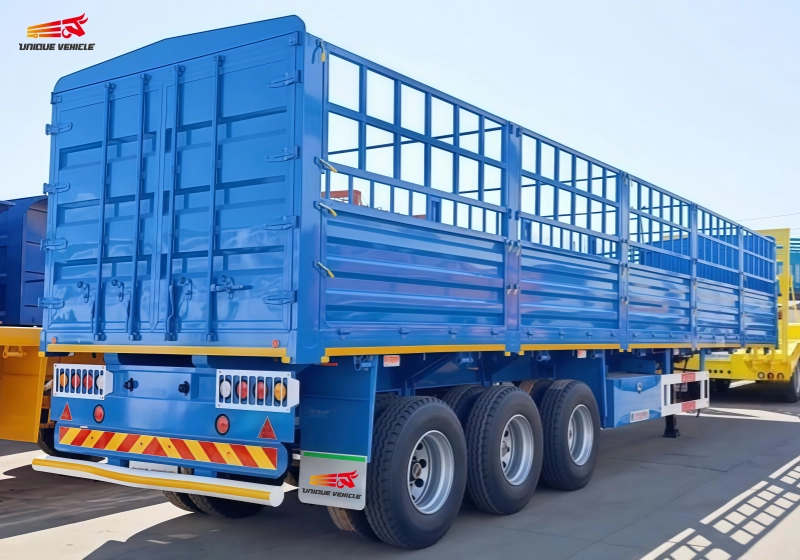

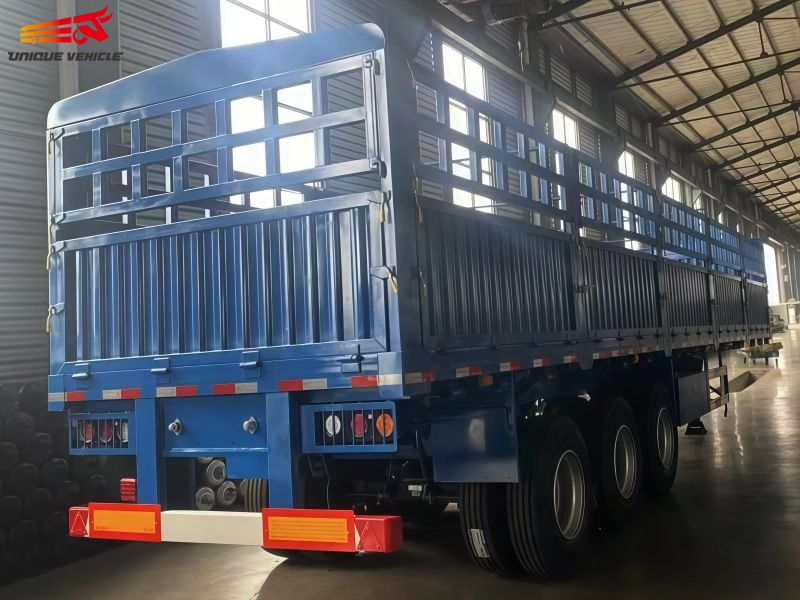

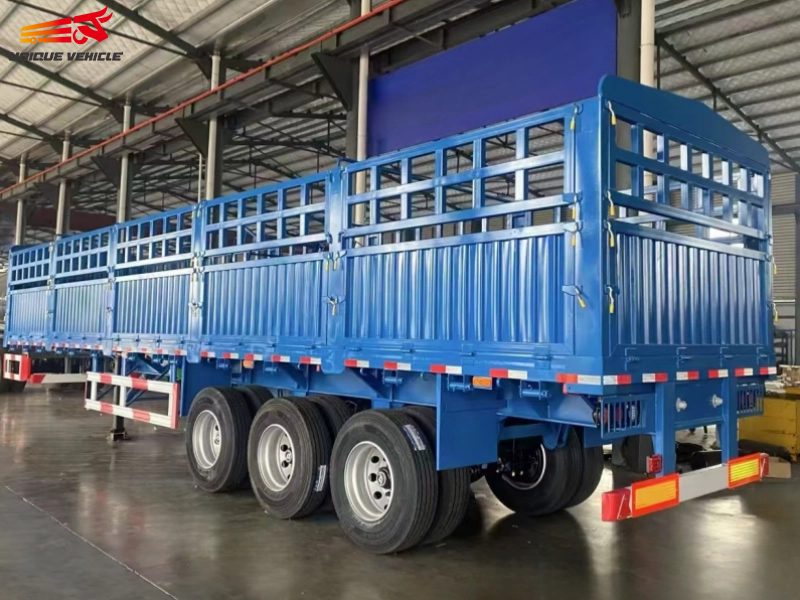

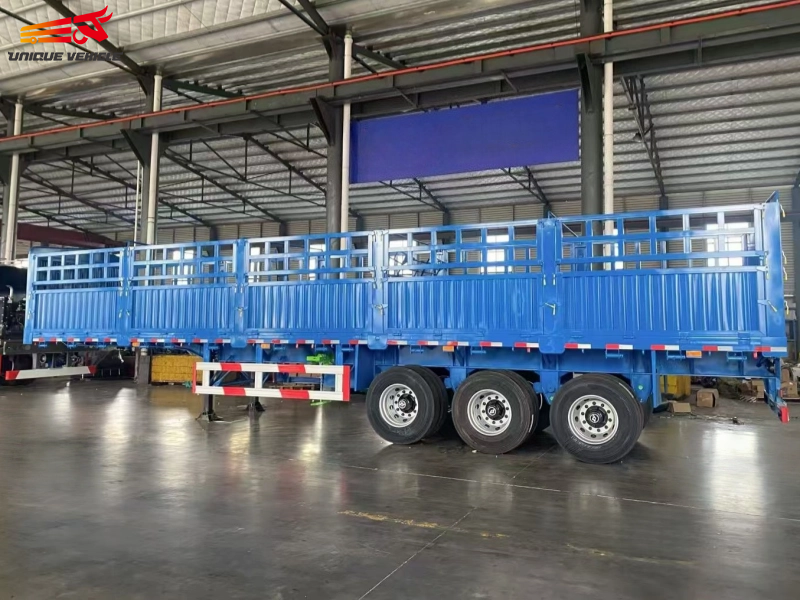

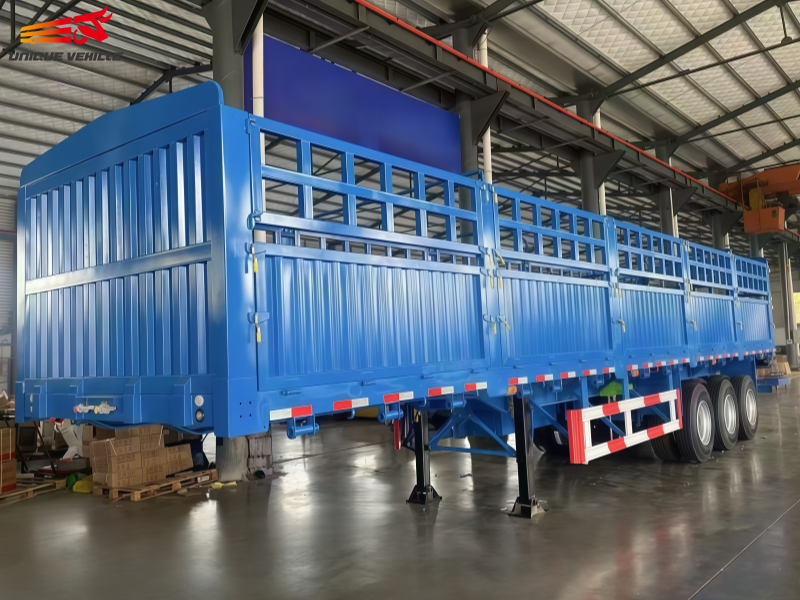

The 3 Axle Fence Cargo Semi Trailer helps distribute the weight more evenly, enhancing stability during transit. This reduces the risk of tipping or swaying, especially when navigating turns or uneven terrain.
Enhanced Durability:
Built with robust materials, semi cargo trailer for sale is designed to withstand the demands of heavy loads and rough conditions, ensuring long-lasting performance.
Paramètres du produit
| Size | 12.5m*2.5m*2.7m(Optional) |
| Payload | 60-80t |
| Main beam | Top flange 16mm,width140mm;Middle Flange 12mm height 500mm;bottom flange18mm,width 140mm(Thickness Optional) |
| Side beam | 20# channel steel (Optional) |
| Cross member | 14# channel steel (Optional) |
| Floor | 4mm checkered plate (Optional) |
| Axle | 3 axle 13T/16T (Optional) |
| Suspension | Mechanical suspension (Optional) |
| Leaf spring | 10pcs*13mm*90mm (Optional) |
| Tire | 12R22.5 13pcs (Brand and specs optional) |
| Wheel rim | 9.0-22.5 13pcs (Brand and specs optional) |
| Kingpin | 3.5″ bolt-in /welded king pin |
| Side wall | With Size optional |
| Front board | With Size optional |
| Fence | With Size optional |
| Landing gear | Special design landing gear |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anti corrosive prime,2coats of final painting |
| ABS/EBS | Without |

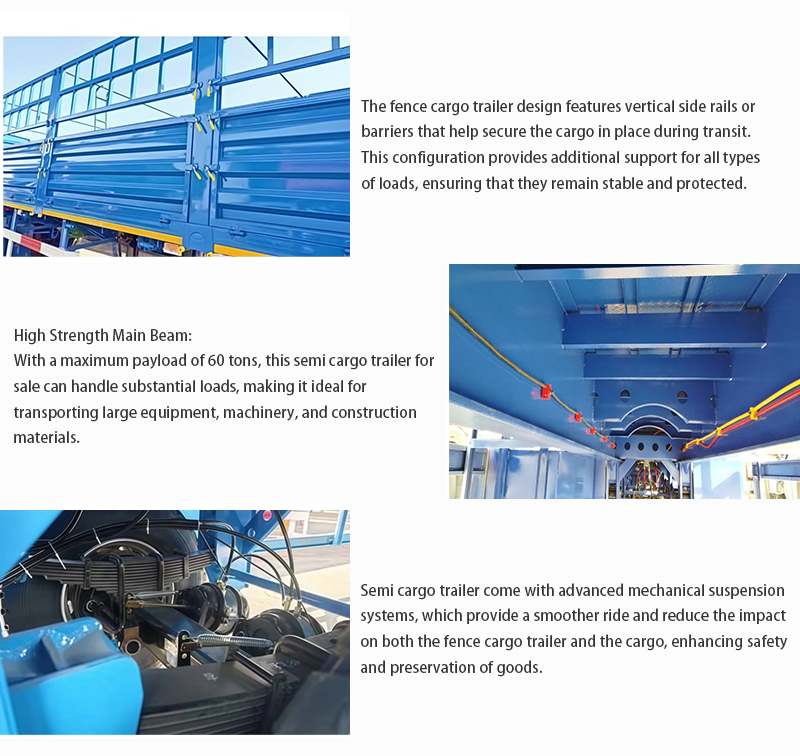

Detail
The Fence Cargo Trailer offers exceptional durability and performance, making it an ideal choice for transporting a wide range of goods. Built to last, it combines robust materials with cutting-edge engineering to ensure reliable operation in various conditions.

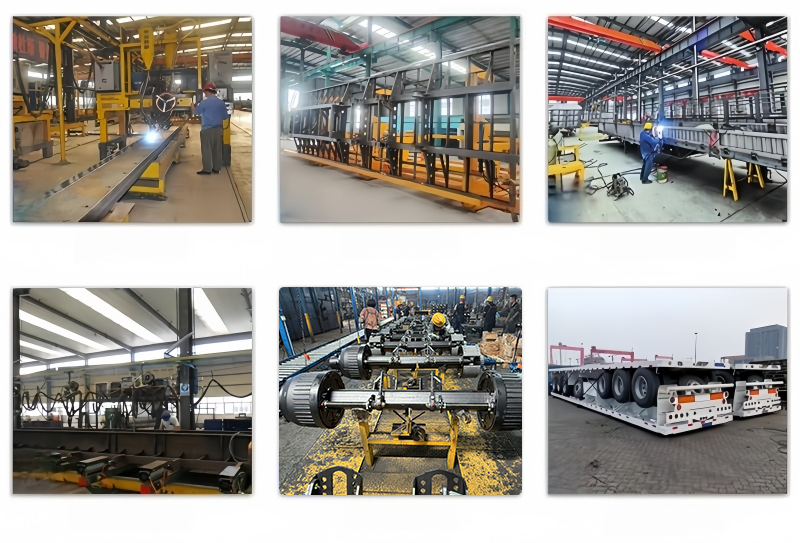

Production Process
To ensure production accuracy and efficiency, the factory is equipped with 10 welding production lines, over 30 CNC cutting machines, 3 large-scale spraying production lines, as well as a series of advanced production equipment such as hydraulic bending machines and shot blasting machines. The key processes of welding, cutting, and spraying are all operated by experienced professional technicians. Quality inspectors are specially assigned to monitor each process in real time. Before the finished products leave the factory, they must undergo comprehensive inspections by a professional quality inspection center to ensure that each semi-trailer delivered to customers has the core advantages of stable performance, safety and reliability, and long service life.
